End dump trailer is also known as dump trailers or dump trucks.They are used to load sand, stone, coal, and other solid building materials or industrial raw materials.
The design of the rear-tilting 3 axle 70 ton dump trailer makes unloading easier.After the rear of the trailer is locked, sand can be loaded.When it arrives at its destination, the front of the 3 axle dump semi trailer can be lifted to allow the cargo to fall from the back.The trailer’s bucket requires thicker steel plates because the cargo is often hard materials, and the steel plates can prevent the cargo from damaging the end dump trailer.
| دبوس الملك | 50mm and 90mm |
| التعليق | Mechanical suspension Heavy duty type |
| سعة التحميل | 60-80 tons |
| Bottom Platform | 4-6mm thick checkered plate |
| Side wall thickness | 4 – 6mm |
| Landing gear | 28Tons，Two speed manual operation |
| Brake valve | WABCO brand |
| الشعاع الرئيسي | Height: 480mm-500mm, Upper plate: 16mm-25mm, Middle plate: 12mm-20mm, Lower plate: 18mm-25mm, Material: T700 steel. |

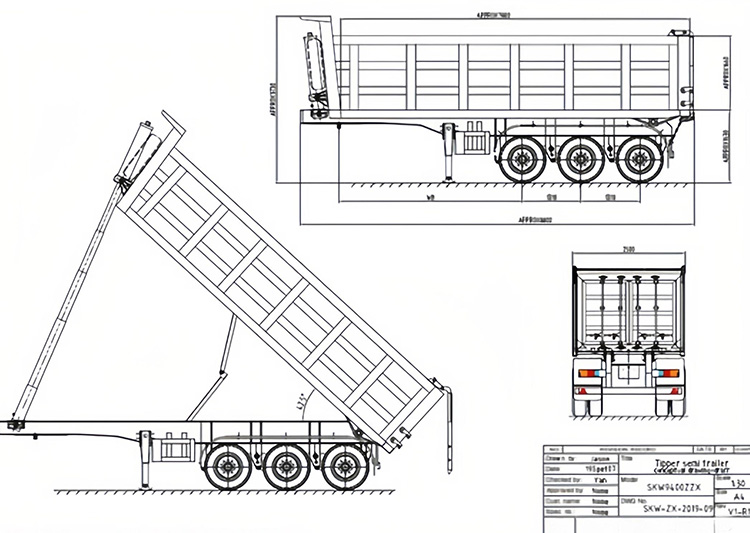

3 Axle 70 Ton End Dump Semi Trailer drawing
3 axle dump semi trailer for sale in Tanzania
3 axle rectangular bucket 70 ton dump trailer for sale
