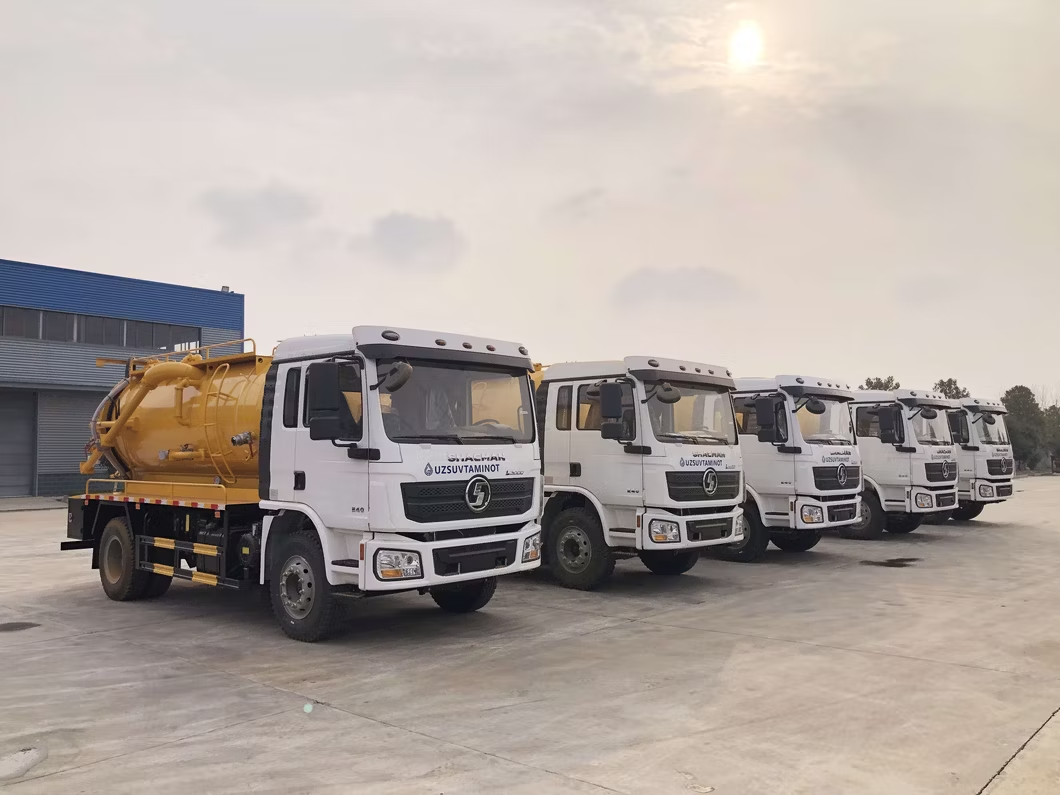

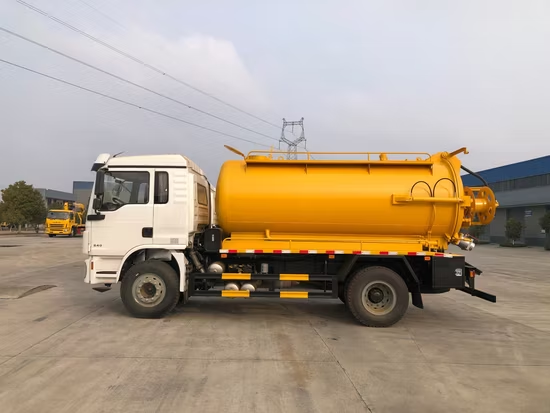

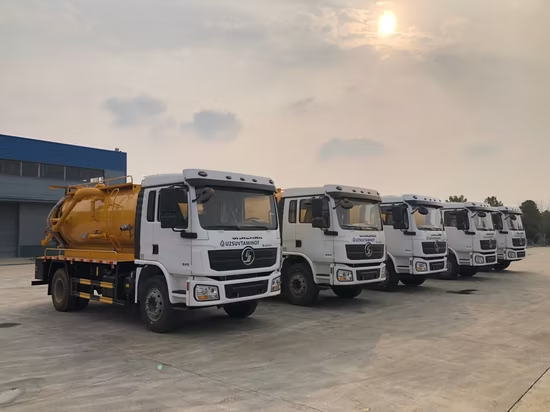

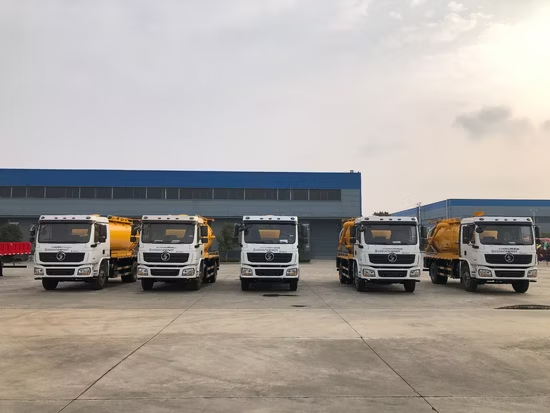

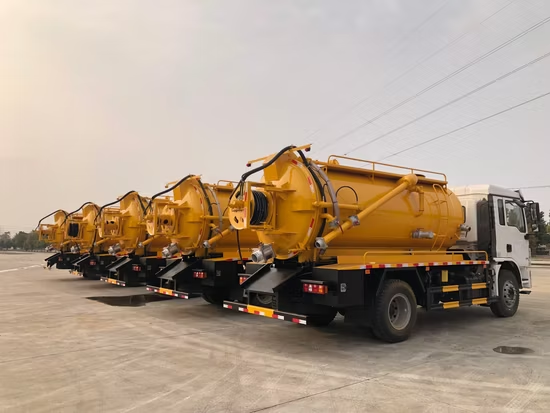

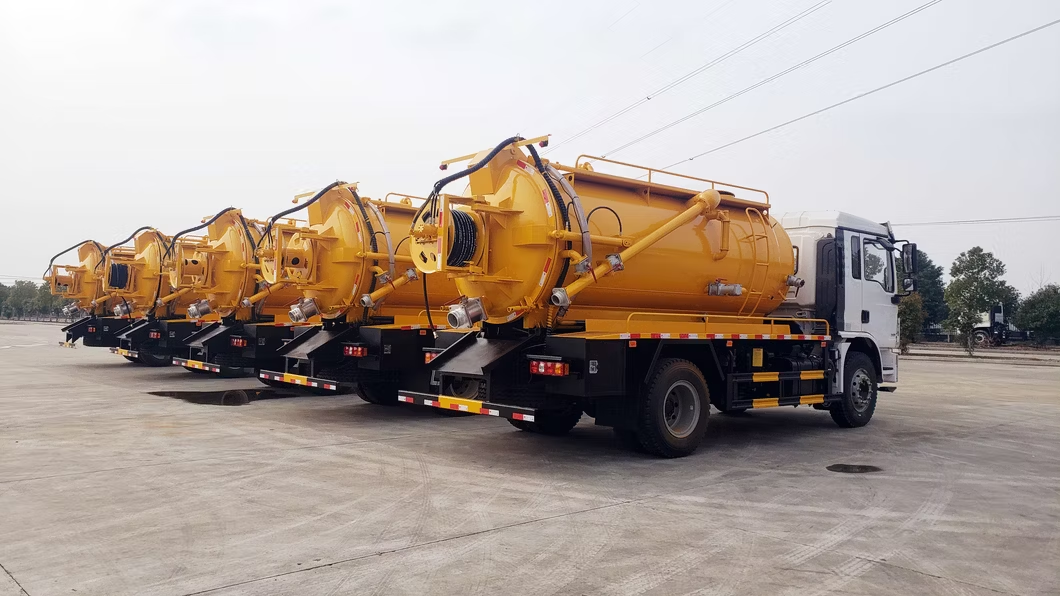

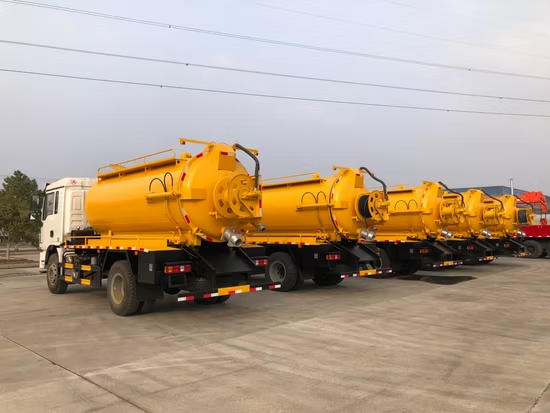

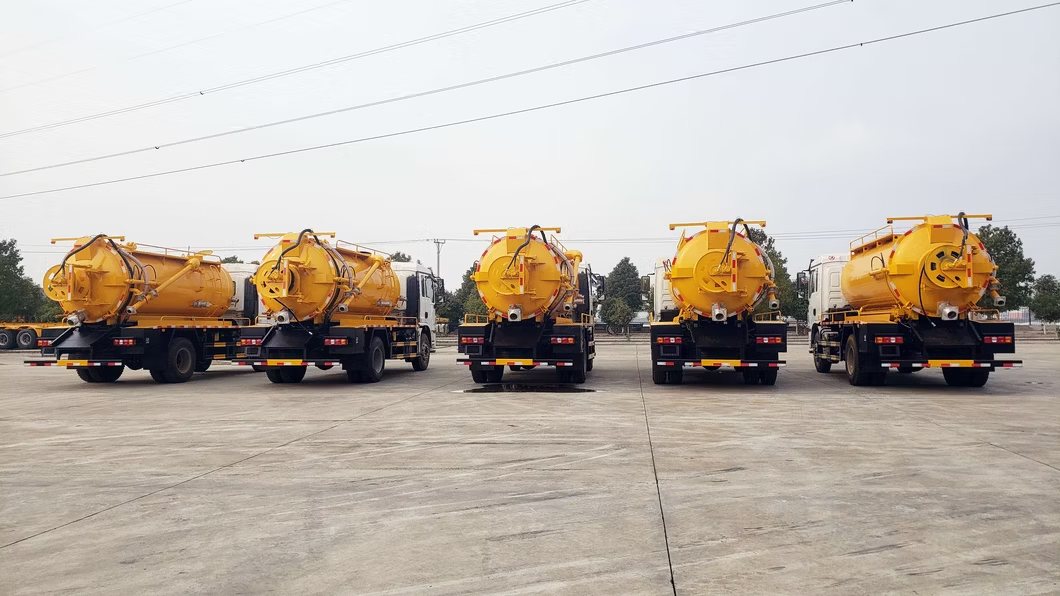

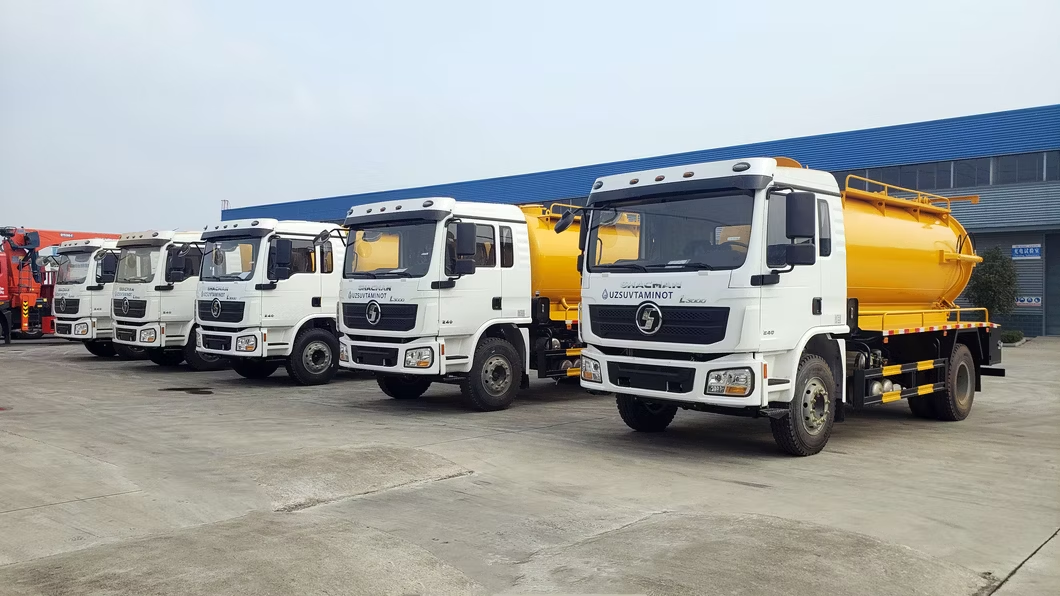

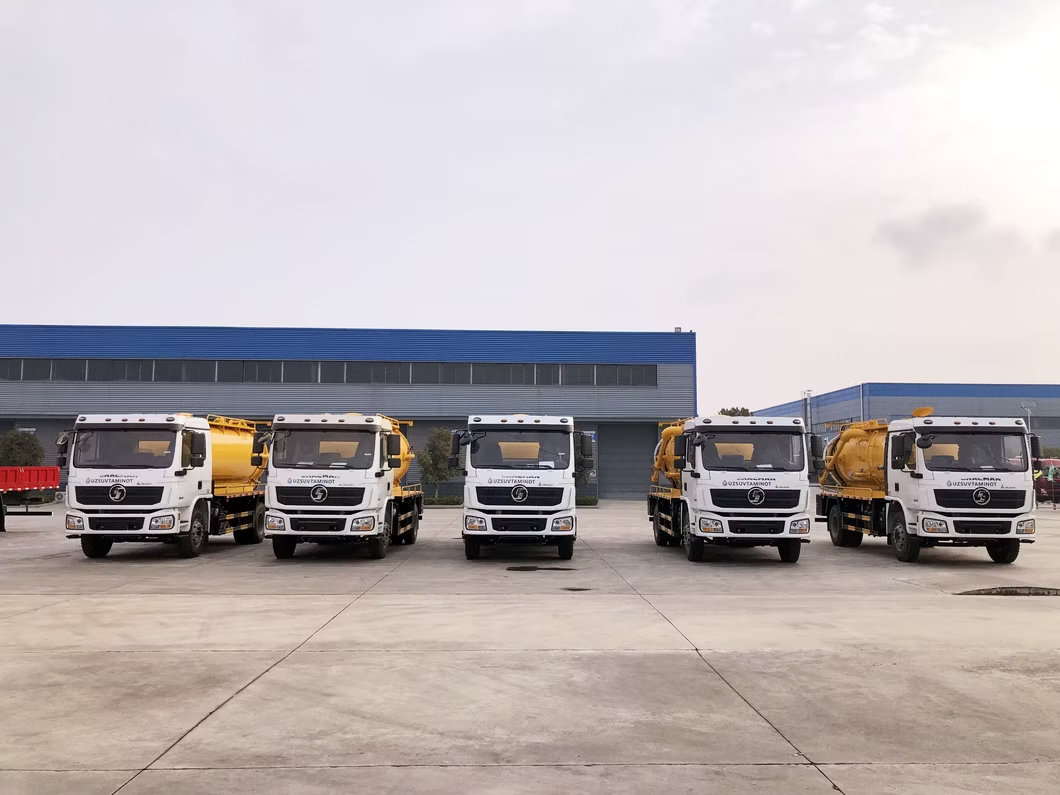

SHACMAN LHD 10Tons Vacuum Sewer Jetting Truck 4×2 High Pressure Jet Suction Truck
1. Chassis:
1) Drive type: 4×2, 4×4, 6×4, 8×4 etc.
2) Our factory has good business relationship with DONGFENG, FOTON, FAW, SINOTRUCK, SHACMAN, JAC, JMC, etc.
2. Tanker body:From 2m3 to 25 m3 capacity.
3. Accessory of sewage suction factions: Equipped with PTO, transmission shaft, vacuum suction sewage pump, high pressure molding tank, moisture separator, gas-oil separation, multiple directional control valve, hanger rod, self-discharging valve, suck fecal gun and pipe network system.
| Chassis parameters | |||
| Condición | New condition /4×2, right hand driving or left hand driving | ||
| Main details | Marca | – | |
| Curb weight(kg) | 8900 kg | ||
| Wheelbase(mm) | 4800 mm | ||
| Dimensions(mm) | 9120*2500*3550mm | ||
| Approach/Departure angle(°) | 20/17 ° | ||
| Max. driving speed(km/h) | 95 km/h | ||
| Clutch | Reinforced diaphragm clutch | ||
| Brakes | Air brakes | ||
| Engranaje de dirección | Power steering, hydraulic steering with power assistance | ||
| Neumático | Quantity | 6 pcs with one spare tire | |
| Specifications | 11R22.5 | ||
| Transmisión | Manual type, FAST Brand, 8 Forwards and 1 reverse | ||
| Cabina | FOTON AUMARK Model, with Air Condition, for 2~3 persons | ||
|
Motor |
Marca | Cummins Engine | |
| Horsepower(HP) | 210 HP | ||
| Fuel type | Diesel | ||
| Displacement(ml) | 6500 ml | ||
| Norma de emisión | Euro 2 or Euro 3 | ||
| Power Supply | PTO,one is for high pressure water pump and another is for spare | ||
| Sewage Suction & Cleaning System | |||
| Water tank | Capacity(cbm) | 4.0cbm/4,000 liters | |
| Tank material | Q235 carbon steel | ||
| Thickness | ≥5 | ||
| Safety protection device | 1-High water level;
2-Low water level 3-No water |
||
| Sewage tank | Capacity(cbm/liters) | 8.0cbm/8,000 liters | |
| Tank material | Q235 carbon steel | ||
| Thickness(mm) | ≥5 | ||
| Opening of Rear Cover | 100% open by hydraulic control | ||
| Working pressure | 93% Vacuum | ||
| Sewer Discharging outlet(mm) | 100~150 | ||
| Tank is front tipping under function of oil cylinder | |||
| Sewage pump | Marca | Italian Brand Jurop | |
| Max. Working Speed(r/min) | 3300 | ||
| Max vacuum | 93% | ||
| Rate flow rate | 2400 L/min | ||
| High pressure water pump | Marca | China famous brand | |
| Tipo | Triple plunger pump | ||
| Max. Pressure(Bar/Mpa) | ≥180/18.0 | ||
| Rate speed(rpm) | 1500 | ||
| Rate flow(L/min) | 300 | ||
| High pressure Winch | Length of High pressure hose(m) | ≥60 | |
| Diameters of High pressure hose(mm) | ≥19 | ||
| Water nozzle | 10 different size water nozzle for cleaning sand,sludge and dirt | ||
| Lamp | 1-Revolving Warning Light on top
2-Upper Arrow Warning light at truck rear 3-Signal light at truck rear |
||
| Main parts | 1. Hydraulic controlled suction hose
2. Water-gas separator; 3. Oil-gas separator 4. Four way valve; 5. Safety valve 6. Anti overflow valve 7. Anti overflow warning device 8. Hydraulic control rear cover; 8. Tipping sewage tank body |
||
| Remarks | The color is optional | ||
