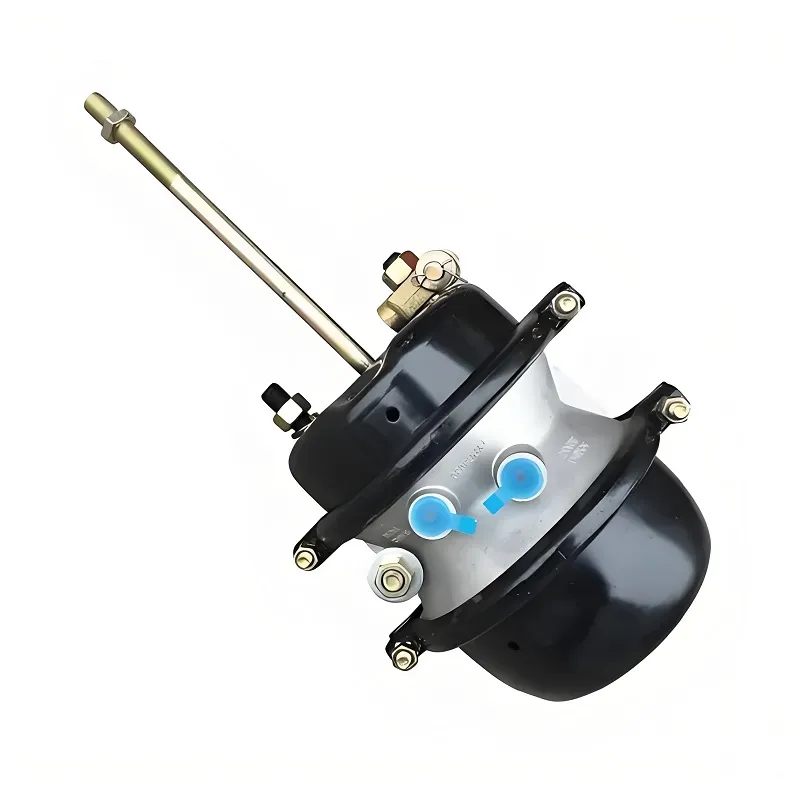

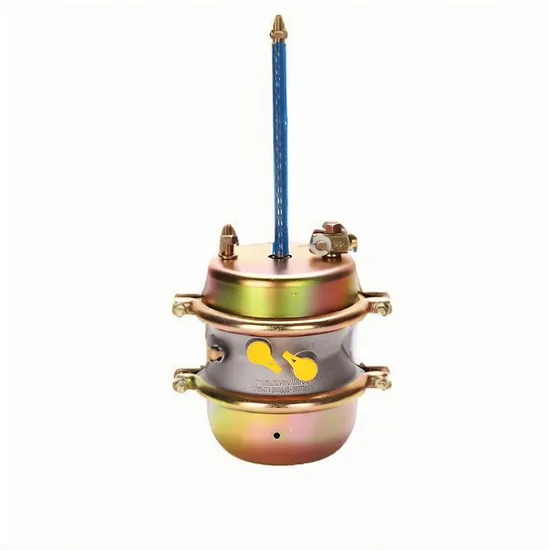

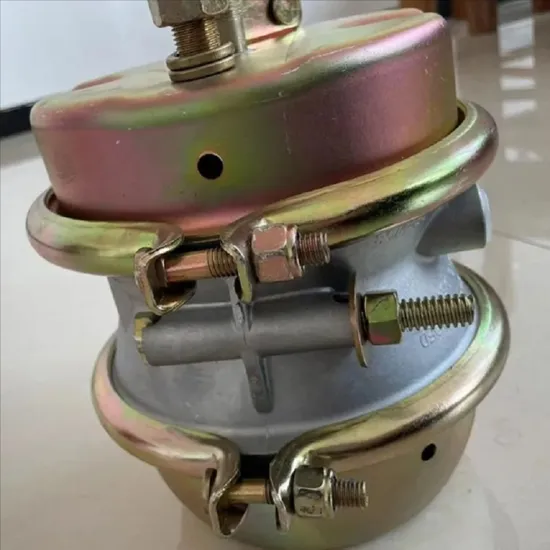

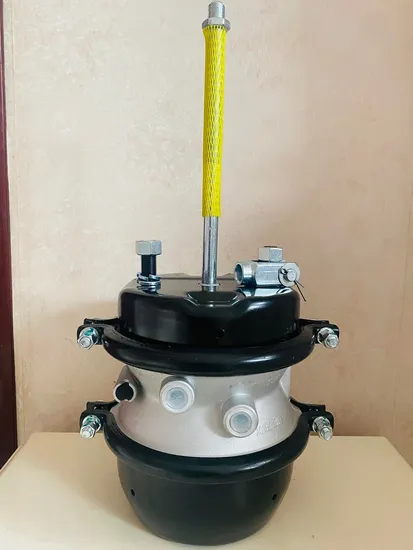

Heavy Truck Semi Trailer Axle Diaphragm Air Spring Seal T30/30dd Brake Chamber

Model NO.:T30/30DD
Type:Brake System
Position:Rear
Certification:ISO9001
Classification:Disc
Drum Brakes Classification:Brake Chamber
Colour:Black or Yellow
Stroke:64mm
Bolt Thread:5/8″ or M16*1.5
Bolt Center:120.7mm
Push Rod Length:285mm
Specification:200.00cm * 40.00cm * 40.00cm

TYPE	STROKE	PROT THREAD	BOLT THREAD	BOLT CENTRE	PUSH ROD THREAD	PUSH ROD LENGTH
T30/30DD	64mm	M16*1.5	M16*1.5	120.7mm	M16*1.5	285mm
	64mm	3/8″-18NPT	M16*1.5	120.7mm	M16*1.5	285mm
	64mm	3/8″-18NPT	5/8″-11UNC	120.7mm	5/8″-18UNF	285mm
T30/30DD Sealed	64mm	M16*1.5	M16*1.5	120.7mm	M16*1.5	285mm
	64mm	3/8″-18NPT	M16*1.5	120.7mm	M16*1.5	285mm
	64mm	3/8″-18NPT	5/8″-11UNC	120.7mm	5/8″-18UNF	285mm
T30/30 Double Sealed	64mm	M16*1.5	M16*1.5	120.7mm	M16*1.5	285mm
	64mm	3/8″-18NPT	M16*1.5	120.7mm	M16*1.5	285mm
	64mm	3/8″-18NPT	5/8″-11UNC	120.7mm	5/8″-18UNF	285mm
T30/30DDY	64mm	M16*1.5	M16*1.5	120.7mm	M16*1.5	285mm
	64mm	3/8″-18NPT	M16*1.5	120.7mm	M16*1.5	285mm
	64mm	3/8″-18NPT	5/8″-11UNC	120.7mm	5/8″-18UNF	285mm
T24/30DD-E	76mm	M16*1.5	M16*1.5	120.7mm	M16*1.5	285mm
	76mm	3/8″-18NPT	M16*1.5	120.7mm	M16*1.5	285mm
	76mm	3/8″-18NPT	5/8″-11UNC	120.7mm	5/8″-18UNF	285mm
T24/30DD	64mm	M16*1.5	M16*1.5	120.7mm	M16*1.5	285mm
	64mm	3/8″-18NPT	M16*1.5	120.7mm	M16*1.5	285mm
	64mm	3/8″-18NPT	5/8″-11UNC	120.7mm	5/8″-18UNF	285mm
