New Construction Machine 7 Ton Wheel Loader Lw700kv

New Construction Machine 7 Ton Wheel Loader Lw700kv

Rated Load:6-9t
Load and Unload Mode:Front Discharge
Type:Large Loader
Dimension(Long * Breadth * High):8900*3200*3600mm
Machine Weight:23500kg
Bucket Capacity:4.2m3
Ground Clearance:520mm
Wheel Base:3450mm
Walking Mode:Wheeled
Power:226kw
Dumping Height:4330mm
Tread:2360mm

Category:

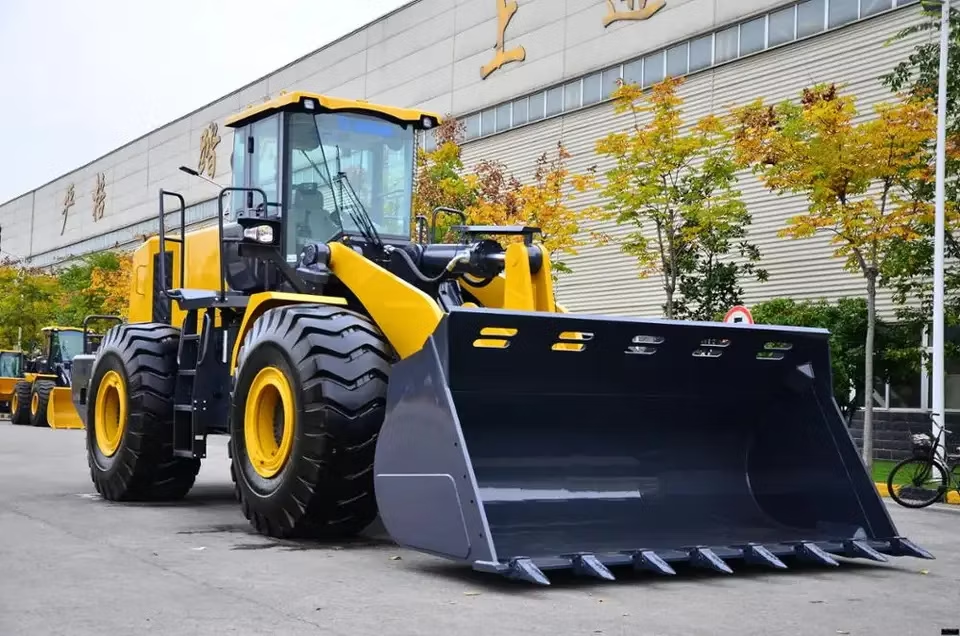

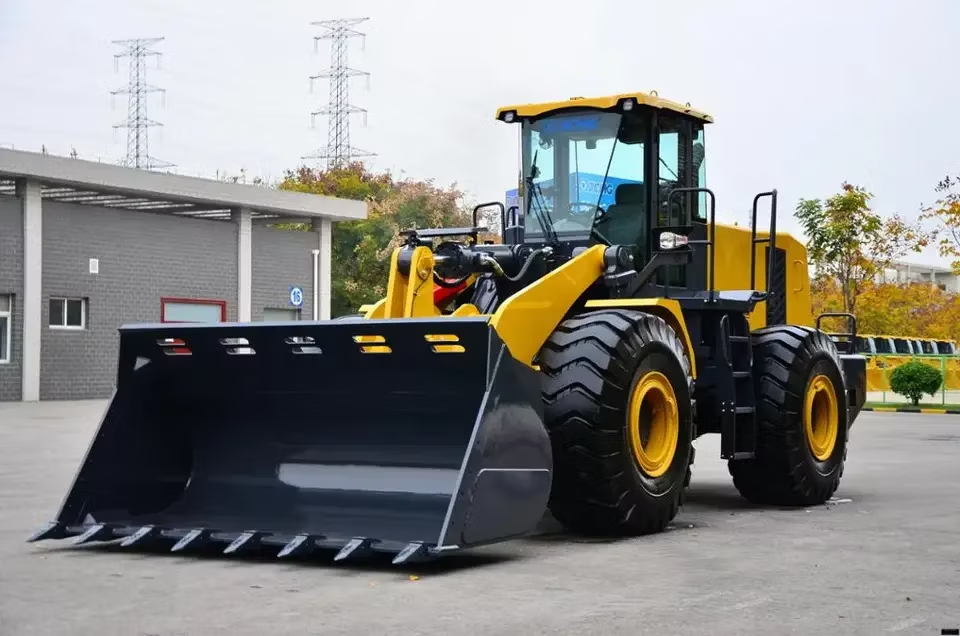

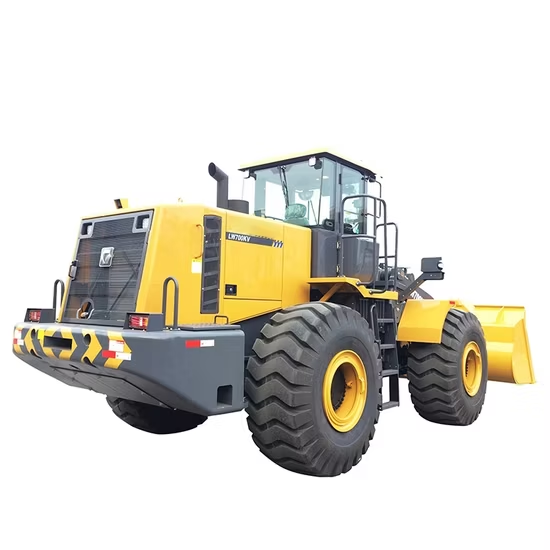

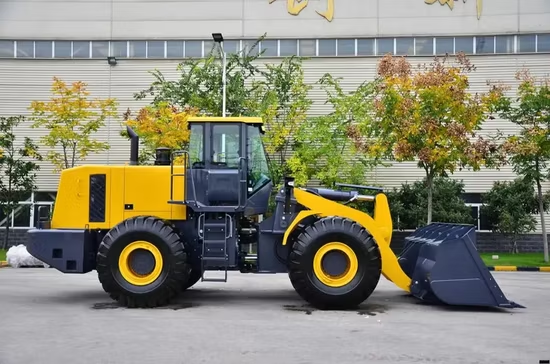

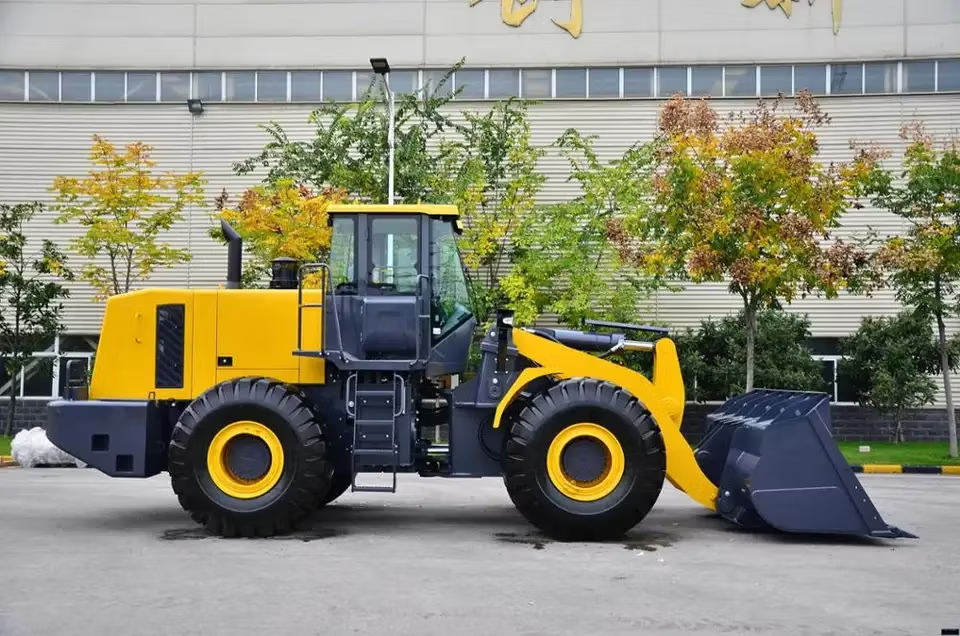

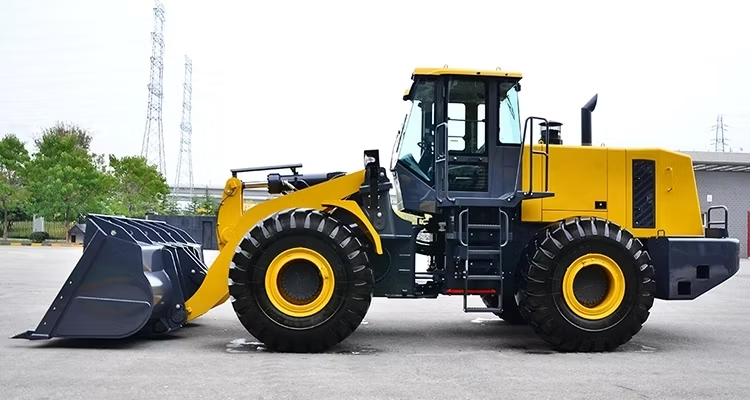

New construction machine 7 ton wheel loader LW700KV

LW700KV wheel loader is a self-propelled earthmoving machine which is hinged in front of the chassis and consists of a moving arm, a connecting rod mechanism and a loading bucket. It can be used for shoveling, transporting, unloading and leveling. If the corresponding working device is replaced, it can also be used for bulldozing, lifting, loading and unloading wood and steel pipes. It is a kind of ten purposes. A wide range of construction machinery.

1. High productivity and low fuel consumption
* The imported Cummins QSM11 electronic injection, air-air inter-cooled, turbocharged engine with electronic start and stop device and high torque reserve coefficient enables the whole machine to have powerful traction force and rapid hydraulic response.

* The low noise and high torque engine and the high capacity torque converter guarantee the maximum efficiency during low speed traveling to remarkably reduce the fuel consumption.

* The hydraulic system adopts pilot control, steering flow amplifying, and working and steering confluence technology to realize low hydraulic power consumption, low energy consumption, and improved efficiency of the hydraulic system.

2. High reliability
The critical parts adopt the international renowned brand products, including originally imported Cum- mins engine, ZF drive axle, MICO brake parts, and are assembled under stringent quality management to guarantee the reliability of the machine.

Description
Unit
Parameter value
Wheel base
mm
3450
Tread
mm
2360
Tire outside width
mm
3070
Hinge height at maximum lifting height
mm
4395
Hinge height during loading
mm
270
Ground clearance
mm
520
Overall machine dimension L×W×H
mm
8900×3200×3600
Rated operating load
kg
7000
Bucket capacity
4.2
Machine weight
kg
23500
Max.breakout force
kN
200
Hydraulic cycle time-raise
s
6
Total cycle time
s
10.8
